Haihao Group Dispatches Low-Temp WPL6 Lateral Tees and MSS-SP-95 Swage Nipples to Russia
Haihao Group has completed a specialized shipment of custom industrial piping components for an energy sector client in Russia. The order features stainless steel concentric swage nipples alongside large-bore, low-temperature alloy 45° lateral tees. Engineered for low-temperature operational environments, both item lines demonstrate robust mechanical integrity under rigorous pressure conditions.
Project Order Specification Manifest
As an experienced MSS-SP-95 swage nipple supplier, Haihao Group ensured all dimensional tolerances aligned with international standard requirements:
Concentric Swage Nipple: DN50 x DN15 (WT 2.77mm) | ASTM A403-WP304/304L Dual Grade | Standard: MSS-SP-95 | Ends: Beveled x Plain (BE/PE) | Finish: Light Anti-Rust Oiled.
45° Lateral Tee (Tee Lateral 45° BW): 10″ x 6″ STD | ASTM A420-WPL6 | Standard: Custom Fabrication to Drawing / ASME B16.9 | Ends: Butt Weld (BW) | Finish: Black Anti-Corrosion Paint.

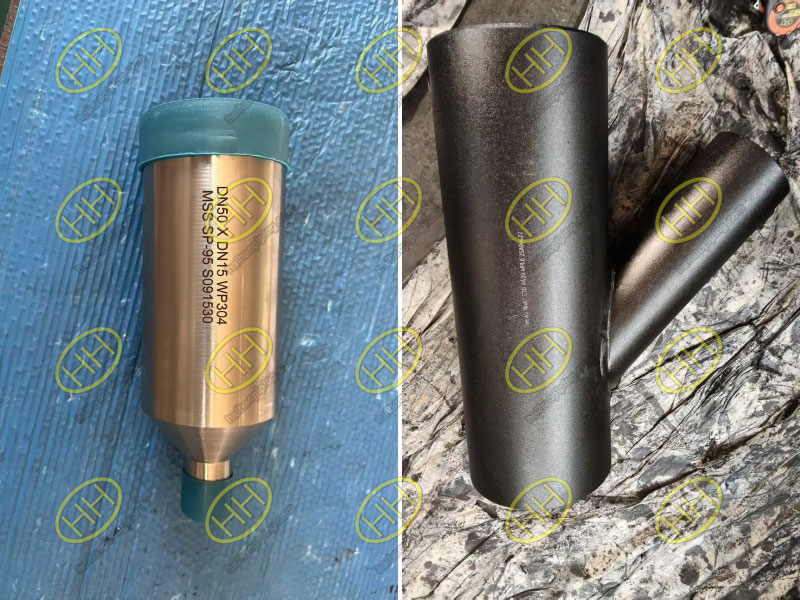

MSS SP-95 ASTM A403 WP304 304L Swage Nipple and ASTM A420 WPL6 Lateral Tee manufactured by Haihao Group
Rigorous Manufacturing & Non-Destructive Testing
Structural integrity in high-stress directional flow piping demands precise manufacturing controls. The 10″ x 6″ 45° lateral tees feature full-penetration welding between the main pipe body and branch connection, followed by 100% Ultrasonic Testing (UT) across all weld seams. Post-Weld Heat Treatment (PWHT) was conducted in strictly regulated heat cycles to ensure optimal stress relief.
Operating conditions in Russia require superior resistance to brittle fracture. Working with a qualified MSS-SP-95 swage nipple supplier guarantees that all low-temperature components, such as the ASTM A420 WPL6 carbon steel tees, undergo full Charpy V-Notch (KCV) impact testing at -52°C alongside 100% Non-Destructive Examination (NDE).
Surface Protection & Sea-Worthy Export Preservation
To safeguard machining tolerances during transit, components underwent specialized anti-corrosion preparation. Partnering with a reliable MSS-SP-95 swage nipple supplier ensures complete quality assurance across packaging and shipping:
Stainless steel swage nipples received protective anti-rust oil coatings before individual polythene wrapping.
Low-temperature steel lateral tees were treated with durable black anti-corrosion paint, complete with heavy-duty plastic bevel caps on all open ends.
Shipments were supplied with EN 10204 3.1 certification covering chemical heat analysis, PWHT charts, and -52°C impact test results.
Energy contractors seeking high-yield fittings for low-temperature service rely on an established MSS-SP-95 swage nipple supplier like Haihao Group for compliant manufacturing. Contact our technical team today to request a quote or custom drawing evaluation for your upcoming pipeline projects.
